Sony VTC6 18650 3000mAh 3.7V Rechargeable Lithium-ion Sony US18650VTC6 30A High Amp Discharge Battery Cells
Nominal Specifications:
Item | Parameters | Remark | |
Rated Capacity | Typical | 3000mAh | standard discharge(0.2C) after standard charge |
Minimum | 2950mAh | ||
Alternating Internal Resistance | ≤70mΩ | ||
| Nominal Voltage | 3.7V | mean operation voltage | |
Voltage at end of Discharge | 2.5V | discharge cut-off voltage | |
Charging at end of Voltage | 4.25V | ||
Standard Charge | Constant Current 0.2C Constant Voltage 4.25V 0.02C cut-off | charge time:Approx 6.0h | |
Standard Discharge | Constant Current 0.2C end Voltage 2.5V | ||
Fast Charge | Constant Current 1C Constant Voltage 4.25V 0.02C5A cut-off | charge time:Approx 2.5h | |
Fast Discharge | Constant Current 1C end Voltage 2.5V | ||
Cycle Characteristic | 1000times(80%DOD) | the residual capacity is no less than 80% of rated capacity at 1C rate. | |
Maximum Continuous Discharge Current | 20A | pulse discharge current: 30A | |
Operation Temperature Range | Charge:0~55℃ Discharge:-20~60℃ | 60±25%R.H. bare battery | |
Storage Temperature Range | Less than 1 year:-20~25℃ Less than 3 months:-20~45℃ | 60±25%R.H. at the shipment | |
Product Advantages:
1) Green product
2) Long standby time
3) 6 months warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed
Applications:
Audio visual equipment
Cellular phones
Office automation
Notebook PC's
PDA's and handy terminals
Digital camera,
Electric bike battery pack and other battery packs
Other devices
Features:
High Capacity and Stable Discharge Voltage
Light weight, small size and high performance
Small internal resistance
Outstanding Discharge properties and Storage Capacity
Pollution free, long cycle life
No memory effect
Existing stock for short delivery time.
Factory price, high quality
Cautions:
1. When using the application equipped with the battery, refer to
the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger,
discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~
60°C.
7. Please check the positive(+) and negative(-) direction before
packing.
8. When a lead plate or wire is connected to the cellfor packing,
check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for
long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where
the protection device can be damaged.
13.When rust or smell is detected on first use, please return the
product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange
to new cells.
Quality Guarantee:
www.eleteks.com is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.
We only sell authentic Li-Ion batteries.
The authentic 18650 batteries are well inspected.
Price:
We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.
We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

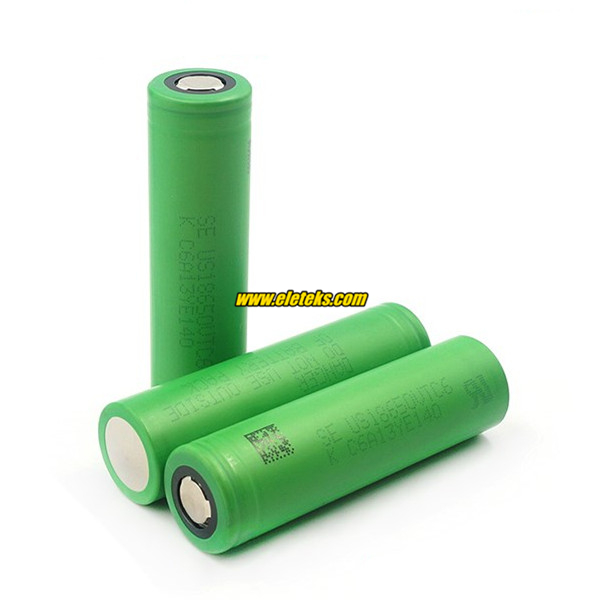

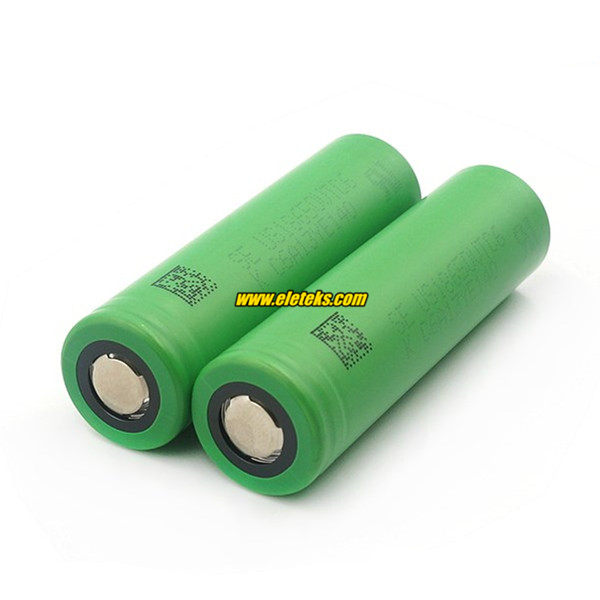

Detail Photos:
To know more about Authentic Sony US18650VTC6 3000mAh 18650 rechargeable 3.7V battery, please check the official Data Sheet with us by following way:
